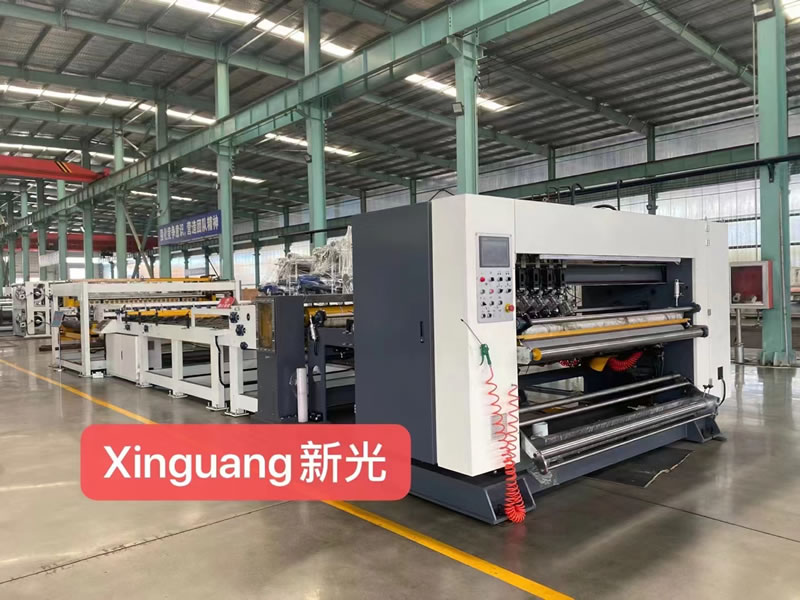

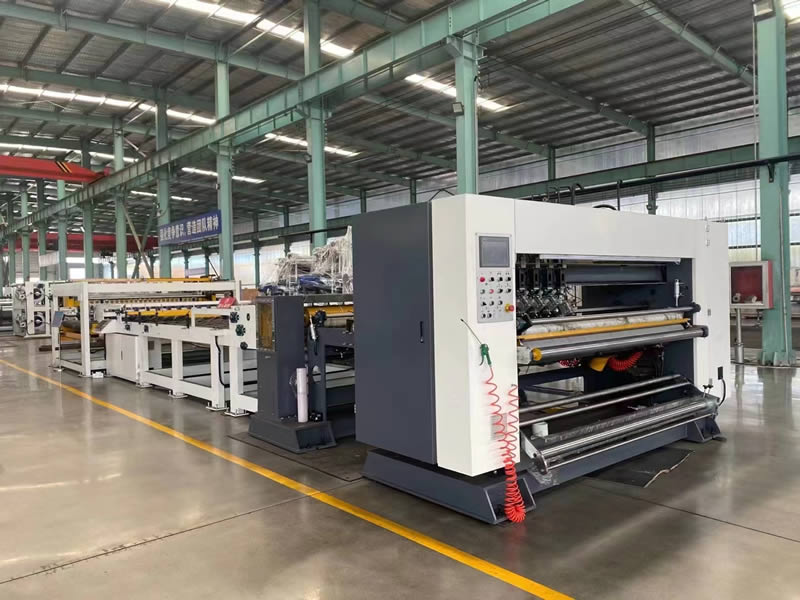

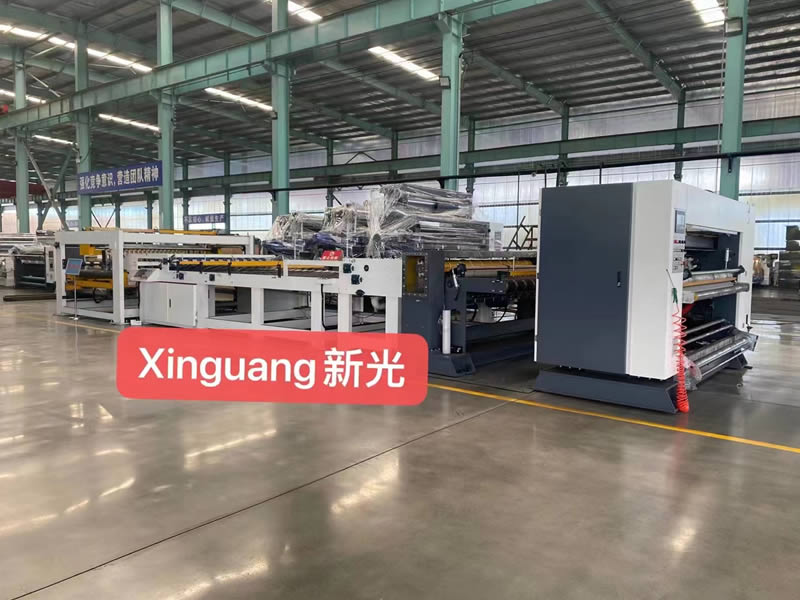

DME 180 Slitter Cutter Double Blade

Technical parameters：

Structural feature：

1. It can store 200 sets of orders, man-machine interface and screen display information, which can be viewed, modified, added and cancelled at any time.
2. KEB servo controller in Germany controls motor drive and high-performance servo motor synchronous drive.
3. The crosscutting machine adopts the structure of insert steel blade, the hard tooth surface grinding gear realizes the transmission without side gap, with high precision and long life.
4. The main engine wall plate is made of gray cast iron with good rigidity and strong vibration resistance.
5. The stacking section adopts the basket platform to lift and lift, and reaches a certain number of right angles to cross out. It is divided into four sections to output paper, and one section of rough roll is designed to make the paper flat Output does not bend, two-stage buffer fixed length overlap, three-stage point pneumatic separation, speed up the output of cardboard. Improve work efficiency. The maximum stacking length is 1.6m. This machine is suitable for high efficiency production of color printing enterprises.
6. Full servo motor control, fast order change, order change time 1-3 seconds.
7. It adopts thin tungsten steel alloy knife with sharp blade and service life of more than 8 million meters.
8. The sharpening is controlled by computer, automatic sharpening or manual sharpening, which can cut and sharpen at the same time, so as to improve the production efficiency.
9. Imported synchronous driving device is adopted, with accurate accuracy, long service life and low operation noise.
10. The upper and lower computer control system is composed of high-quality imported industrial computers and high-performance programmable controllers.

Main dynamic parameters：

Main parts brand and origin：
