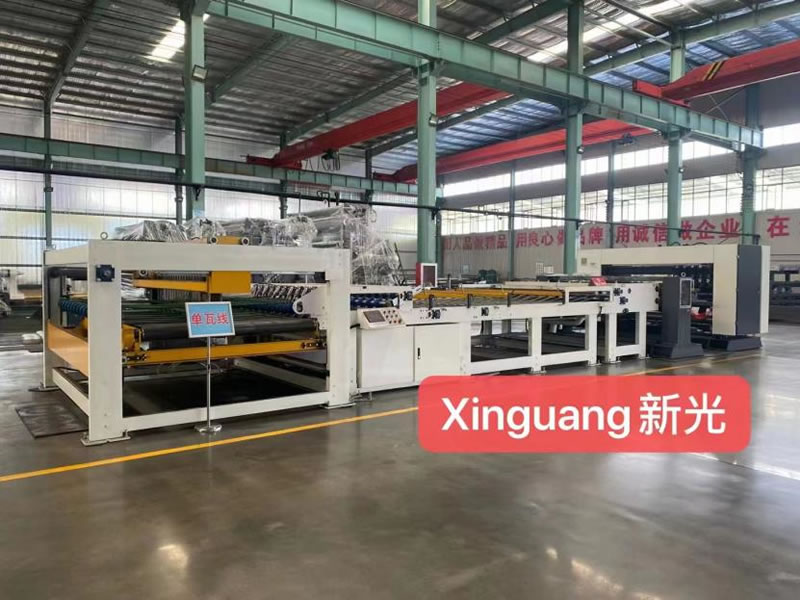

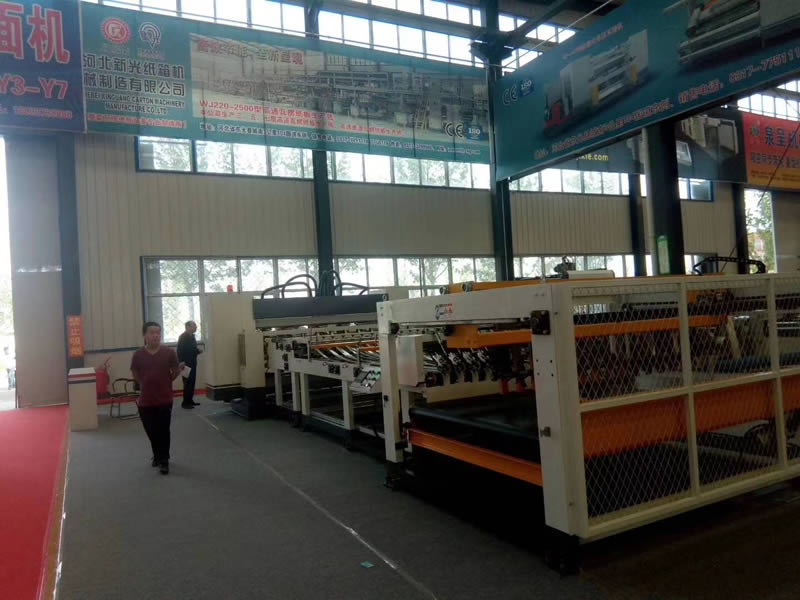

DME 180 Slitter Cutter Single Blade

Technical parameters：

Working width	1400-2500mm
Design speed	180m/min
Min slitting width	180mm
Min. cutting length	300mm
Max. cutting length	9999mm
Cutting accuracy	±1mm(average speed)
Working power	380V 50Hz 22KW

Structural feature：

It can store 200 sets of orders, man-machine interface and screen display information, which can be viewed, modified, added and cancelled at any time.
Kopeck servo controller in Germany controls motor drive and high-performance servo motor synchronous drive.
The crosscutting machine adopts the structure of insert steel blade, the hard tooth surface grinding gear realizes the transmission without side gap, with high precision and long life.
The main engine wall plate is made of gray cast iron with good rigidity and strong vibration resistance.
The stacking section adopts the basket platform to lift and lift, and reaches a certain number of right angles to cross out. It is divided into four sections to output paper, and one section of rough roll is designed to make the paper flat Output does not bend, two-stage buffer fixed length overlap, three-stage point pneumatic separation, speed up the output of cardboard. Improve work efficiency. The maximum stacking length is 1.6m. This machine is suitable for high efficiency production of color printing enterprises.
Full servo motor control, fast order change, order change time 1-3 seconds.
It adopts thin tungsten steel alloy knife with sharp blade and service life of more than 8 million meters.
The sharpening is controlled by computer, automatic sharpening or manual sharpening, which can cut and sharpen at the same time, so as to improve the production efficiency.
Imported synchronous driving device is adopted, with accurate accuracy, long service life and low operation noise.
The upper and lower computer control system is composed of high-quality imported industrial computers and high-performance programmable controllers.

Main dynamic parameters：

Part name Craftsmanship	Specification	Surface treatment	Special treatment
Diameter of upper cutter shaft of cross cutting	￠ 200mm		Dynamic balance
Diameter of cross cutting lower cutter shaft	￠200mm		Dynamic balance
Diameter of the lower paper drawing rolle	￠156mm	Round grinding chrome plating polishing	Dynamic balance
Note: after all roller shafts are ground, the surface of hard chromium plating (except for upper and lower cutter shafts) shall be treated.

Main dynamic parameters：

Name	Power	Voltage	Frequency
Main drive full AC synchronous servo motor motor	22KW	380V	50HZ
cradle motor variable frequency speed regulation	3KW	380V	50HZ
paper feeding motor variable frequency speed regulation	1.5KW	380V	50HZ
transverse motor ariable frequency speed regulation	0.75KW	380V	50HZ

Main parts brand and origin：

name	Brand and origin	material	name
AC servo motor	Shanghai	22KW	AC servo motor
Feeding frequency conversion mortor	Taiwan CPG		Feeding frequency conversion mortor
bearing	Haerbin,wafangdian,luoyang		bearing
Power lock	Xianyang		Power lock
Bearing with seal	Zhejaing		Bearing with seal
Contactor	SIEMENS		Contactor
proximity switch, photoelectric switch	Japan OMRON		proximity switch, photoelectric switch
Flying shear control system of servo	Germany KEB		Flying shear control system of servo
PLC for slitting	Delta		PLC for slitting
Rotary coder	ELCO		Rotary coder
Feeding invertor	Taiwan Delta		Feeding invertor
HIM	Kinco		HIM
Sun wheel	Shenzhen		Sun wheel
Pneumatic parts	Airtac		Pneumatic parts
