Type and specifications
The type of products type: for example:type.FJA1600 FJA represent the type of rewinder .1600 represent the width of rewinding. (unit:mm)
| 1400 | 1600 | 1800 | 2000 | 2200 |
Main application scope and adaptation

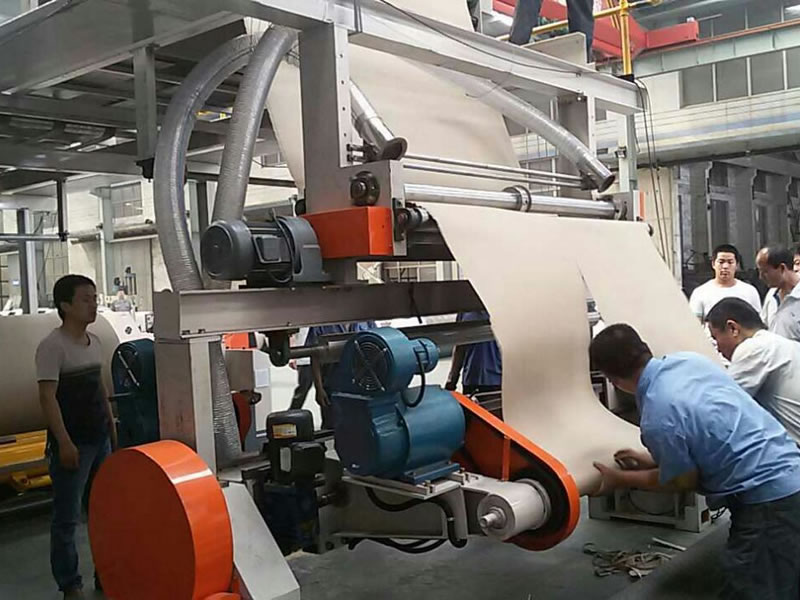

FJ-A rewinder is used in the single face paperboard production line, according to the customers’ rquest, to rewind the single face paper board, if for other application, the customers carry the result.
Parameter
Technical：
| model | 1400 | 1600 | 1800 | 2000 | 2200 | ||
| Rewinding diameter（mm） | max | 1400 | |||||
| min | 500 | ||||||
| Rewinding length（mm） | max | 1400 | 1600 | 1800 | 2000 | 2200 | |
| min | 200 | 400 | 600 | 800 | 1000 | ||
Electric parameter：
| motor | volt | electric | power |
| Driving motor | 380V | AC | 4(sets)X 0.55Kw |
| Lift motor | 380V | AC | 1.5Kw |
| Rewind motor | 380V | AC | 2(sets)X2Kw |
Total power：7.7 Kw.
Electric ：380VAC 50Hz.
