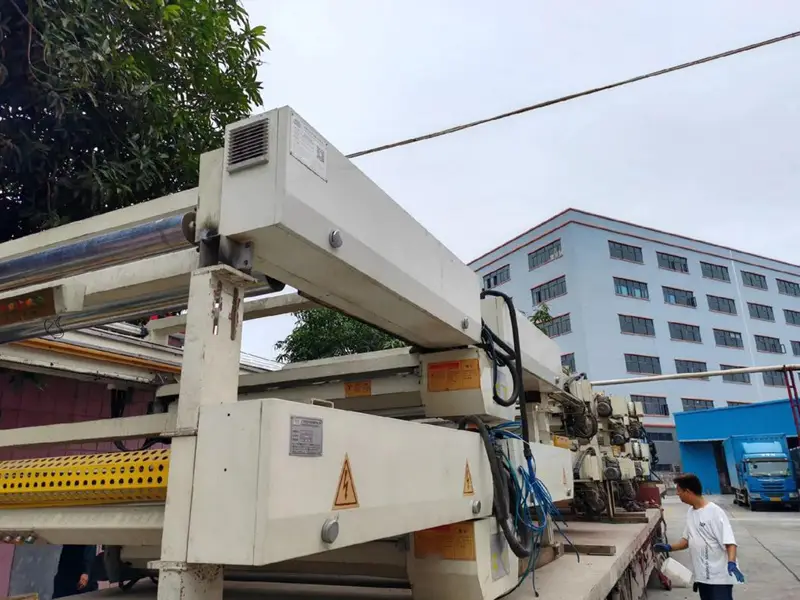

Auto splicer JZJ250 is designed for high speed corrugated cardboard production line

Auto splicer is an essential units for high speed corrugated cardboard production line

The corrugated cardboard production line develop direction is higher speed and more intelligence, for meeting the development of the production lines, the auto splicer plays an important roles day by day.

If you buy a new corrugator line, once its speed is higher than 2oom/minute, it will equipped with auto splicer, because high speed running and make lower waste rate, the auto splicer plays an important role.

The auto splicer finish all process is on the paper belt running in high speed, when the old paper roll is finish, the auto splicer will stick the new paper roll on the old paper correctly, and cut the old paper automatically, then the new paper roll feeding paper to the production line. The auto splicer is application wildly in carton making industry because of its reliability.

Working principal of auto splicer

Though there are difference design structure of the auto splicer, but they have same working principal.

Paper supplying and prepare to connect new paper. When the paper roll are on feeding, its speed is same as production line. Before splicing, prepare the tape on the new paper roll to prepare working.

Position fix. When the old paper roll is finished, there is a signal to the auto splicer, then the auto splicer adjust its angle, make the new paper roll go to the splicing position, after fixing the position, then the belt come to the new paper roll, and increase speed for the new paper roll.

Increasing the paper roll speed. This splicing is in high speed, then before connecting, we need to make the new paper roll is same speed to old paper roll, on the process, old paper roll still feeding in production line, until the new paper roll is connected.

Feeding new paper. After the new paper are feed, the belt raise up, we can put a new paper roll on the mill roll stand and prepare to feeding.
