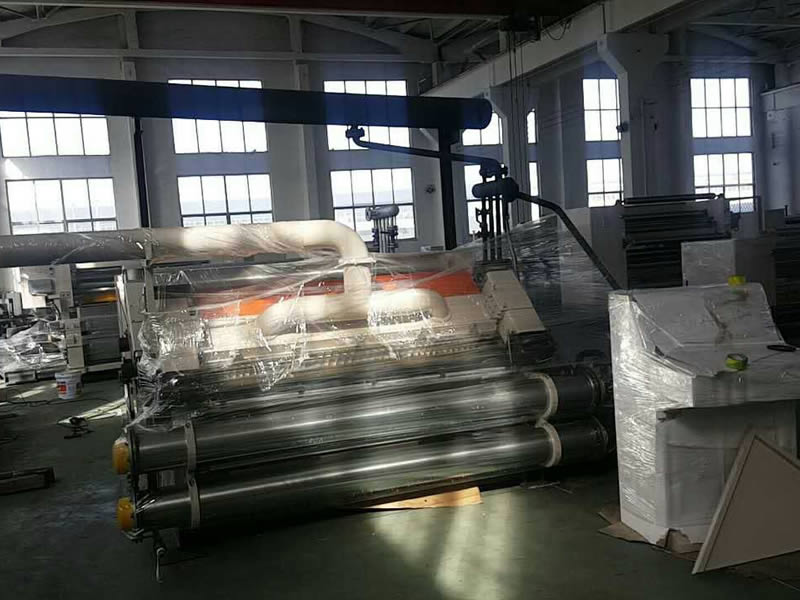

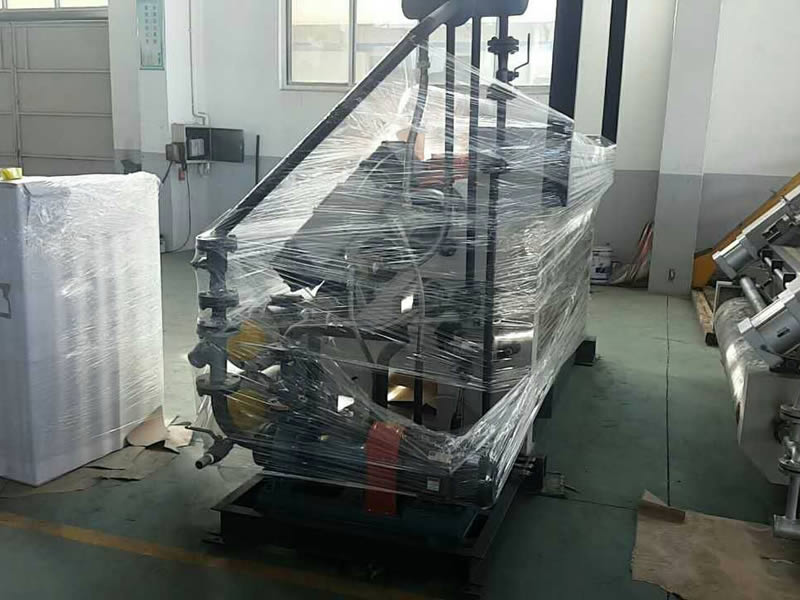

SF10A Single Facer

Parameters:

width	140-18000mm
Design speed	100m/min
Working speed	60-80m/min
Paper width	1450--850mm
Max steam temprature	200℃
Max steam pressure	1.2Mpa
Working power	380V 50Hz 100KW

Characters:

It adopts hood suction structure with high pressure strong fan. The air suction is equipped with silencing device. The air source and electrical control are concentrated in the same operation cabinet. The distance from the main engine is not less than 1.5 meters. The operation side is fully enclosed and covered.
The thickness of the wall panel is 130mm.
The corrugating roller is made of 50crmo alloy steel. After quenching and tempering, medium frequency quenching and surface polishing, the main corrugating roller has a diameter of 292mm and a surface hardness of more than hrc58. The high temperature bearing produced by Wafangdian is used for the bearing of key parts of tile roll and pressure roll.
The gluing unit can be moved out horizontally as a whole. It is easy to disassemble and maintain. The cylinder controls the glue feeding and retching action. The copper plate scraping is clean. The electric rubber baffle controls the glue width. The angle sensor, PLC and touch screen are used. According to different paper, different speed automatic control glue quantity, no accumulated error.
The preheating roll is made of 320mm seamless steel pipe produced by Tiangang,.
The pressure roller can stop and rotate automatically, and the transmission part is driven by synchronous belt.
The gear box universal shaft transmission is adopted, and the gear is hardened by high frequency quenching. Oil lubrication, life-long. Variable frequency motor speed regulation, energy saving and high efficiency.

main parts brand and origin:

Name	Specification	Material	Treatment
Flute roller	Main roller￠292mm	50CrMAo alloy steel	Tungsten carbide or chromium plating
Pressure roller	￠268mm	45＃	Quenching round grinding, chrome plating and polishing
Gluing roller	￠215mm	45＃	Chromium plating of round grinding and pressing pits with reticulated pattern
Fix roller	￠128 mm	45＃	Round grinding, chrome plating and polishing
Pre heater	￠320mm	Q235B	Round grinding, chrome plating and polishing
Guiding roller	￠110/85mm	45＃	Round grinding, chrome plating and polishing

main power：

Name	Power	Voltage	HZ
Main drive variable frequency motor	7.5KW	380V	50HZ
High pressure blower	7.5KW	380V	50HZ

main part brand and origin：

No.	Name	Brand	Remarks
01	Frame	Factory	HT250
02	Rotary connector and metal soft pipe	Fujian
03	Main motor	Hengshui	7.5KW variable frequency motor
04	Bearing	Haerbin,wafangdian,zhejaing
05	Bearing with seat	Zhejiang
06	High pressure blower	Shanghai	7.5KW
07	Pneumatic parts	AirTac
08	Electrics	SIEMENS	Contactor, relay,button
09	PLC Frequency converter	Delta
10	Touching screen	Taiwan	7.5 inch
11	Glue pump	Hebei	Belt driving
