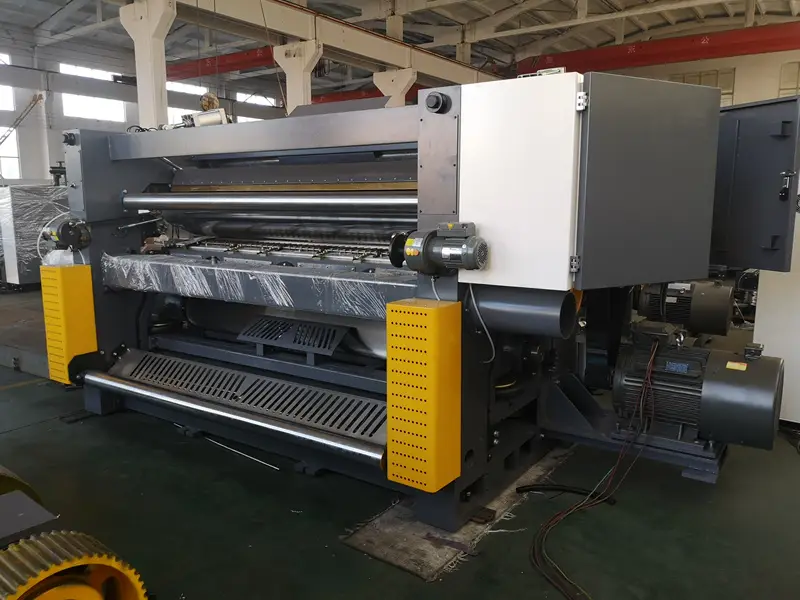

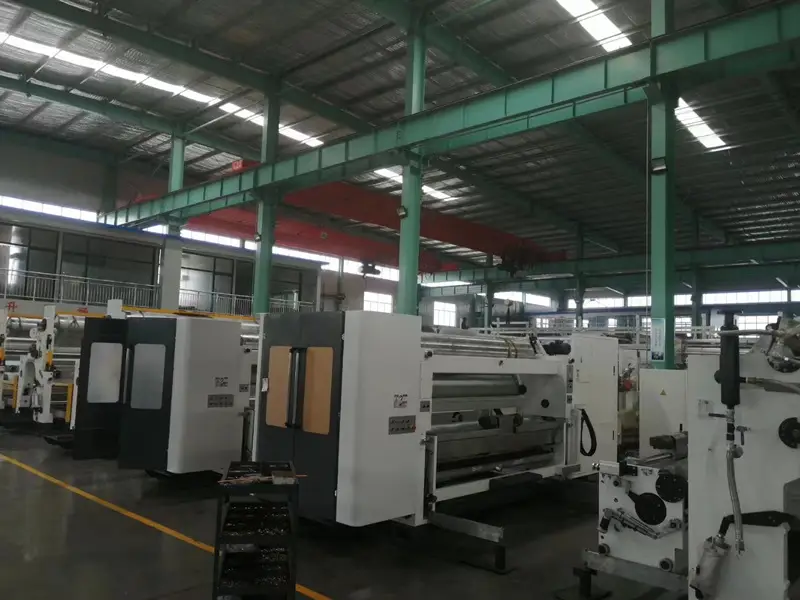

Parameters:
Width | 1400-2200mm |
Design Speed | 180m/min |
Economic speed | 100-150m/min |
Paper width | 1850--850mm |
Max steam temp | 200℃ |
Max steam press | 1.2Mpa |
Work power | 380V 50Hz 40KW |
Characters:
main parts parameter:
Name | Specifications | Material | Surface treatment |
Flute roller | Main roller ¢346mm | 50CrMAo alloy steel | Tungsten carbide treatment |
Press roller | ¢370mm | 45# | Quenching round grinding, chrome plating and polishing |
Gluing roller | ¢240mm | 45# | Chromium plating with reticulated pattern in round grinding and pressing pits |
Fixing roller | ¢142 mm | 45# | Circular grinding, chrome plating and polishing |
Pre heater | ¢400mm | Q235B | Circular grinding, chrome plating and polishing |
Guiding roller | ¢110 mm | 45# | Circular grinding, chrome plating and polishing |
main drive parameter:
Name | Power | Voltage | Hz |
Main drive variable frequency motor | 22KW | 380V | 50HZ |
High pressure blower | 11KW | 380V | 50HZ |
Glue adjust reducer | 100W | 380V | 50HZ |
Glue adjust motor | 200W*2 | 380V | 50HZ |
Glue pump | 2.2KW | 380V | 50HZ |
main part brand and origin:
No. | Name | Brand | Remarks |
01 | Frame | Factory | HT250 |
02 | Rotary connector and metal soft pipe | Fujian | |
03 | Main drive motor Variable frequency motor | Hengshui | 22KW |
04 | RV reducer | Taiwan | |
05 | Bearing | C&U | |
06 | Bearing with seat | Zhejaing | |
07 | High pressure blower | Shanghai | 11KW |
08 | Pneumatic parts | AirTac | |
09 | Electromagnetism valve | AirTac | |
10 | Electrics | SIEMENS | Contactor,relay,button |
11 | PLC frequency converter | Delta | |
12 | Touching screen | Waiwan |
