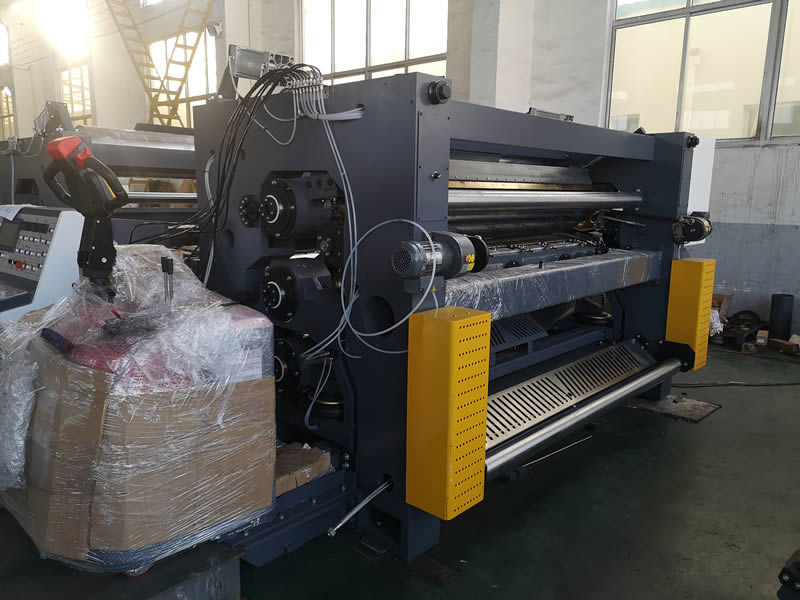

parameters:
Width | 1400-1800mm |
Design speed | 180m/min |
Economic speed | 80-130m/min |
Paper width | 1850--850mm |
Max steam temp | 200℃ |
Max steam press | 1.2Mpa |
Work power | 380V 50Hz 45KW |
Size | |
weight |
characters:

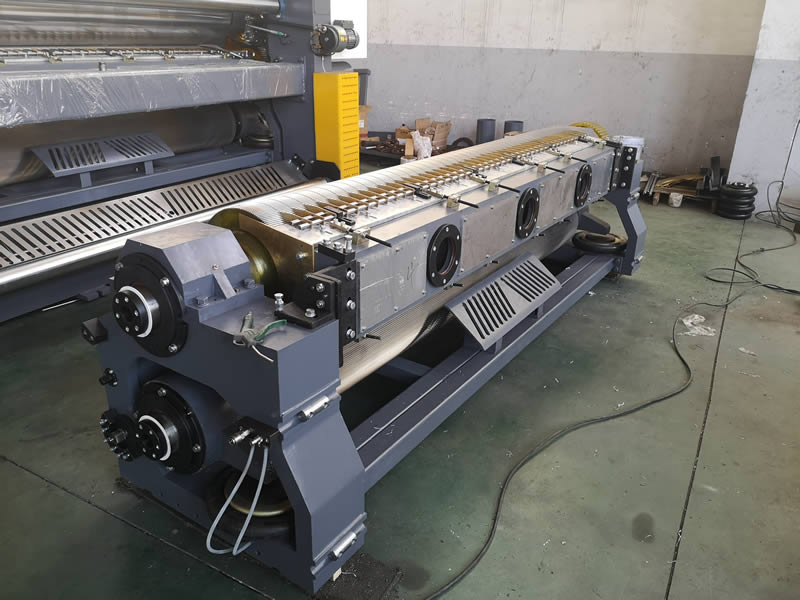

main parts parameters:
Name | Specification | Material | Surface treatment |
Flute roller | Main roller¢320mm | 50CrMAo alloy steel | Tungsten carbide treatment |
Pressure roller | ¢370mm | 45# | Quenching round grinding, chrome plating and polishing |
Gluing roller | ¢269mm | 45# | Chromium plating with reticulated pattern in round grinding and pressing pits |
Fixing roller | ¢153 mm | 45# | Round grinding, chrome plating and polishing |
Pre heater | ¢400mm | Q235B | Round grinding, chrome plating and polishing |
Guiding roller | ¢110 mm | 45# | Round grinding, chrome plating and polishing |
main drive parameters:
Name | Power | Voltage | Hz |
Main drive variable frequency motor | 22KW | 380V | 50HZ |
High pressure suction motor | 11KW | 380V | 50HZ |
Glue adjust reducer | 100W | 380V | 50HZ |
Glue adjust motor | 200W*2 | 380V | 50HZ |
Glue pump | 2.2KW | 380V | 50HZ |
Gluing unit motor | 3.7KW | 380V | 50HZ |
main parts origin and brand:
No. | Name | Brand | Remarks |
01 | Frame | Factory | HT250 |
02 | Rotary connector and metal soft tube | Fujian | |
03 | Main drive variable frequency motor motor | Hengshui | 22KW |
04 | RV reducer | Taiwan | |
05 | Bearing | C&U | |
06 | Bearing with seat | Zhejiang | |
07 | High pressure blower | Shanghai | 11KW |
08 | Pneumatic parts | AirTac | |
09 | Electromagnetism valve | AirTac | |
10 | Lower pressure electrics | SIEMENS | Contactor, relay, button |
11 | PLC Frequency converter | Delta | |
12 | Touching screen | Taiwan |
