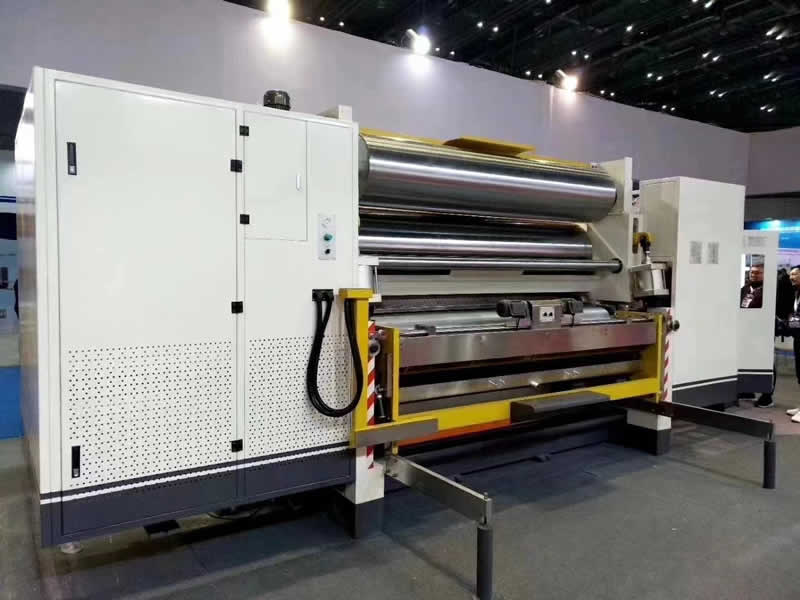

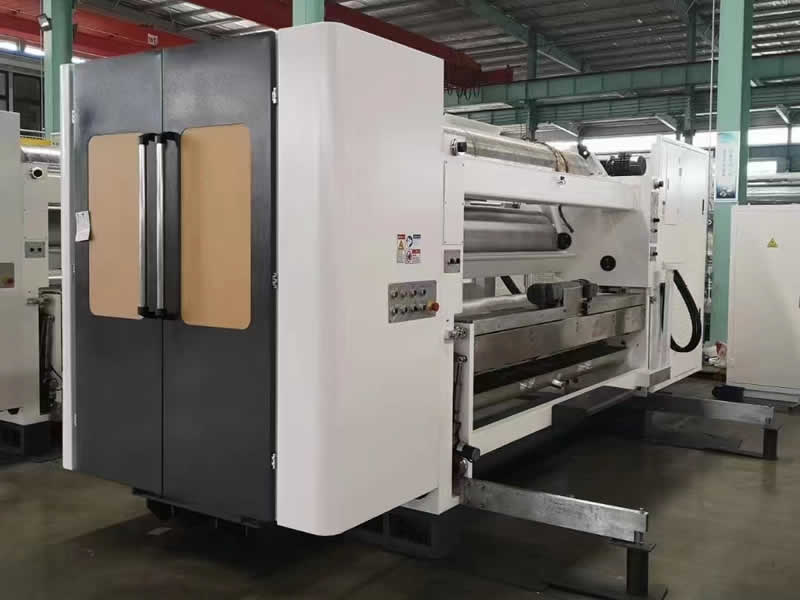

SF35 Single Facer
Technical parameters:
Working width |
2200-2800mm |
Design speed |
350m/min |
Economic speed |
220-330m/min |
Paper feed range |
2850--1300mm |
Steam temperature |
200℃ |
Steam pressure |
1.2Mpa |
Working power |
380V 50Hz 80KW |
Structural feature:
- Main corrugated roller: ¢500mm (varies according to different corrugated types), pressure roller ¢600mm, preheating roller ¢500mm.
- Adopt negative pressure design, low heat loss, so that the core paper can be evenly pressed and attached to the surface of the corrugating roller, so that the corrugation can be formed better, because the pressure is uniform, the top of the corrugated can be better and evenly coated with glue, Make single-sided corrugated paper fit better.
- Quick roll change, 10 minutes, when changing the corrugated roll, it is towed by an electric trolley, sent into the machine, locked by the air pressure system, and fixed on the machine base, just a few button switches can be quickly and easily Complete corrugating roll replacement.
- The main and auxiliary corrugating rollers are made of 50CRMO high-quality alloy steel, after heat treatment, the surface is treated with tungsten carbide after grinding, and the surface hardness is above HV1200.
- The corrugating roller, pressure roller, etc. adopt the air bag control system with high stability, and also have the effect of air pressure control and buffering, and the adjustment of the gap between the rollers adopts electric control.
- The amount of glue applied is controlled by electric adjustment, the glue separation device is electric, and the gluing system can operate independently when the host stops to prevent the glue from drying up.
- The mobile gluing system is not only convenient for cleaning, but also more conducive to maintenance and repair work.
- Simple operation control system, touch screen operation interface, and color graphics to display operation status, function selection, fault indication, elimination and parameter setting can all show that this machine has complete functions, easy operation and humanization.
- Built-in preconditioner with spray system to adjust the temperature and moisture of the core paper.
- The bearings of the main and auxiliary corrugating rollers and pressure rollers are all made of high temperature grease to ensure the bearing life and smooth operation.
Main component parameters:
Part name
Craftsmanship |
Specification |
Material |
Surface treatment |
Corrugated roller |
Main roll¢500mm |
50CrMA oalloy steel |
Tungsten carbide treatment |
Pressure roller |
¢600mm |
45# |
hardened round chrome polished |
Glue roller |
¢320mm |
45# |
Round grinding embossed pit pattern chrome plating |
Doctor glue roller |
¢195mm |
42CrMo |
Round grinding chrome |
Preheat roller |
¢500mm |
Q235B |
Round grinding chrome |
Paper guide roller |
¢128 mm |
45# |
Round grinding chrome |
Main dynamic parameter:
Name |
Power |
Voltage |
Frequency |
Main drive servo motor |
60KW |
380V |
50HZ |
High-pressure suction motor |
22KW |
380V |
50HZ |
Adjustable glue reducer |
100W |
380V |
50HZ |
Glue adjustment motor |
200W*2 |
380V |
50HZ |
Glue pump motor |
2.2KW |
380V |
50HZ |
B、Main parts brand and origin:
Serial number |
Main part name |
Brand or place of origin |
Remarks |
01 |
Box rack |
Self-produced |
HT250 |
02 |
Rotary joint and metal hose |
FuJian |
|
03 |
Main servo motor |
Chao Tong Bu, Beijing |
60KW servo motor |
04 |
RV reducer |
Taiwan Cheng Bang or Wanxin |
|
05 |
Bearing |
Japan NSK |
|
06 |
Seat belt bearing |
FuJian |
FSB |
07 |
High pressure fans |
Guangdong Jiuzhou Huipu |
22KW |
08 |
Pneumatic Components |
Airtac |
|
09 |
The electromagnetic valve |
Airtac |
|
10 |
Low-voltage electrical appliances |
SIEMENS |
Contactor, relay, button |
11 |
PLC servo |
SIEMENS or HuiChuan |
|
12 |
Touch screen |
MCGS |
|
13 |
hydraulic station |
Seven Ocean, Taiwan |
|
