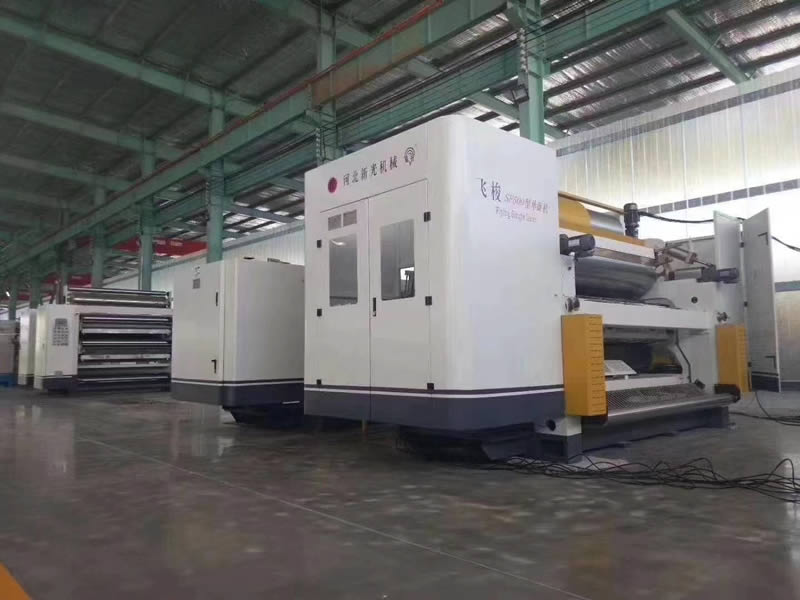

Technical parameters:
Working width | 1800-2500mm |
Design speed | 250m/min |
Economic speed | 180-230m/min |
Paper feed range | 2550--850mm |
Steam temperature | 200℃ |
Steam pressure | 1.2Mpa |
Working power | 380V 50Hz 70KW |
Structural feature:
Main component parameters:
Part name Craftsmanship |
Specification | Material | Surface treatment |

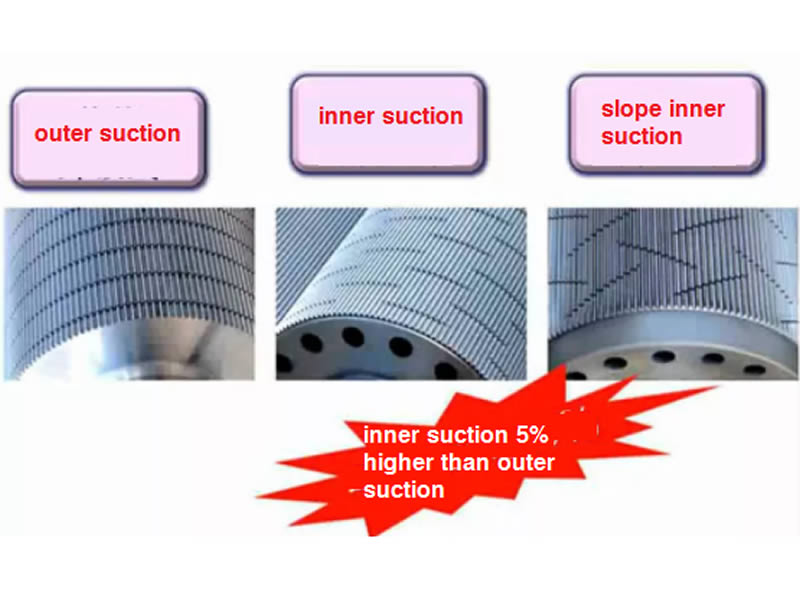

Corrugated roller | Main roll¢405mm | 50CrMAo合金钢 | Tungsten carbide treatment |
Pressure roller | ¢495mm | 45# steel | Hardened round grinding chrome plating polishing |
Glue roller | ¢320mm | 45# steel | Round grinding and pressing pit mesh chrome plating |
Fixed paste roller | ¢175mm | 45# steel | Round grinding chrome |
Preheat roller | ¢400mm | Q235B | Round grinding chrome |
Paper guide roller | ¢110 mm | 45# steel | Round grinding chrome |
Main dynamic parameter:
Name | Power | Voltage | Frequency |
Main drive motor | 45KW | 380V | 50HZ |
High-pressure suction motor | 15KW | 380V | 50HZ |
Adjustable glue push rod | 30W | 380V | 50HZ |
Glue adjustment motor | 200W*2 | 380V | 50HZ |
Rubber pump motor | 2.2KW | 380V | 50HZ |
Motor of glue department | 3.7KW | 380V | 50HZ |
main parts origin and brand:
Serial number | Main part name | Brand or place of origin | Remarks |
01 | Box rack | Self-produced | HT250 |
02 | Rotary joint and metal hose | FuJian | |
03 | Main drive motor | Siemens Bed | 30KW Inverter motor |
04 | RV reducer | Taiwan city-state or Wanxin | |
05 | Bearing | Japan NSK | |
06 | Seat belt bearing | FuJian | |
07 | High pressure fans | Shanghai yingfa | 15KW |
08 | Pneumatic Components | AirTac | |
09 | The electromagnetic valve | AirTac | |
10 | Low-voltage electrical appliances | SIEMENS | Contactor, relay, button |
11 | Frequency controller and PLC | SIEMENS | |
12 | Touch screen | Taiwan Weilun or Kunlun Tongtai |
