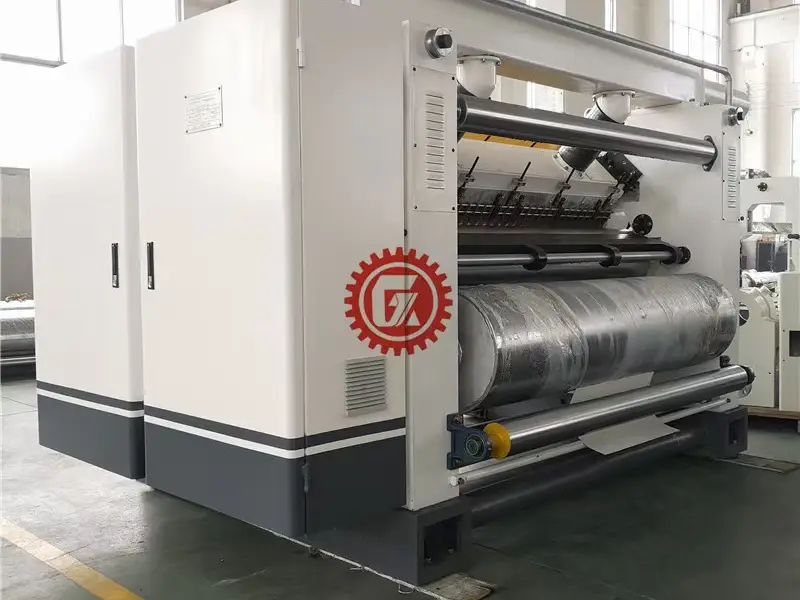

parameters:
Width | 1400-1800mm |
Design speed | 120m/min |
Economic speed | 80-120m/min |
Width | 1850--850mm |
Max steam Temp | 200℃ |
Max steam pressure | 1.2Mpa |
Work power | 380V 50Hz 25KW |
Size | |
weight |
characters:
main parts origin and parts:
Name | Specifications | Material | Surface treatent |
Flute roller | Main roller ¢292mm | 50CrMAo alloy steel | Tungsten carbide or chromium plating |
Pressure roller | ¢320mm | 45# | Quenching round grinding, chrome plating and polishing |
Glue roller | ¢215mm | 45# | Chromium plating with reticulated pattern in round grinding and pressing pits |
Fix roller | ¢128 mm | 45# | Round grinding, chrome plating and polishing |
Core paper pre heater | ¢400mm | Q235B | Round grinding, chrome plating and polishing |
Surface paper pre heater | ¢600mm | Q235B | Round grinding, chrome plating and polishing |
Guiding roller | ¢110 mm | 45# | Round grinding, chrome plating and polishing |
drive parameters:
Name | Power | Voltage | Hz |
Main drive variable frequency motor | 11KW | 380V | 50HZ |
High pressure blower | 11KW | 380V | 50HZ |
main parts origin and brand:
No. | Name | Brand | Remarks |
01 | Frame | Factory | HT250 |
02 | Rotary connector and soft metal pipe | Fujian | |
03 | Main motor | Hengshui | 11KW Variable frequency motor |
04 | Bearing | C&U | |
05 | Bearing with seat | Zhejiang | |
06 | High pressure blower | Shanghai | 11KW |
07 | Pneumatic parts | AirTac | |
08 | Electrics | SIEMENS | Contactor, relay, button |
09 | PLC Frequency converter | Delta | |
10 | Touching screen | Taiwan | 7.5 inch |
11 | Glue pump | Hebei | Belt drive |
